SmallRig Heavy-Duty Quick Release D-Shape Top Handle for Sony FS7/FS7II/FS5 and Ursa Mini 1979
This top handle is supposed to provide solid and comfortable handheld shooting experience with quick release function, for the most popular camcorders in the market, including Sony PXW-FS5/FS7/FS7II and Blackmagic Design Ursa Mini.
1.Weights 450g, this heavy-duty handle strikes a balance between weight and fastness. The handle consists of two parts: a dovetail handle clamp with dual rod clamp, and the hand grip part, which can be quickly released or locked.
2.The dovetail clamp integrated a dual rod clamp, which can be used for 15mm LWS (light weight support) system. The front side can be equipped with follow focus, FS7 original monitor and lens support; the back side can be used for external power or wireless transmitter.
3.15mm rod can be placed in left-right direction in the rod clamp in the joint of hand grip part.
4.The hand grip is patterned with Arri locating points and cold shoe mounts, which can be utilized for magic arm, microphone or wireless transmitter.

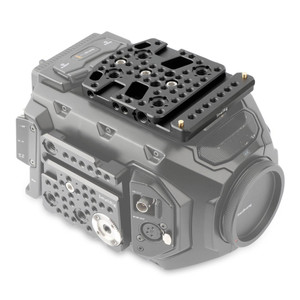

5.Compatible with SmallRig Top Plate for Sony FS5 1852, Top Plate for Ursa Mini 1853 and other cheese plates.
Blackmagic Design Ursa Mini
1 x Top Handle
2 x 1/4” Screw
2 x Hex Spanner
Product Dimensions: 200 x 109 x 88.5mm
Net Weight: 450g
Package Size: 210 x 145 x 55mm
Material(s): Aluminum Alloy
